Tên sản phẩm: MÁY NÉN KHÍ TRỤC VÍT INGERSOLL RAND TWO STAGE M200-350 KW SG
Model: M200-350 KW SG

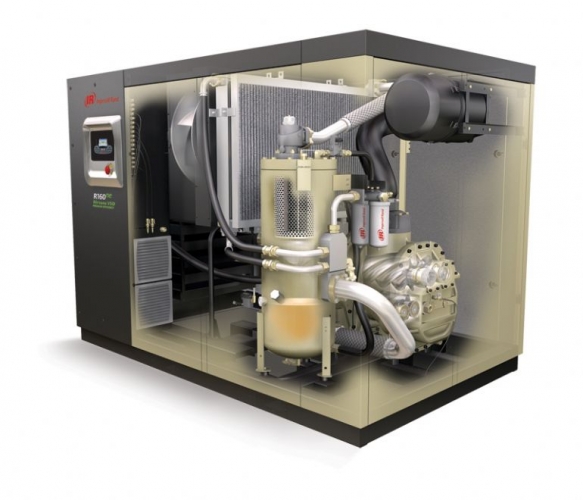

MÁY NÉN KHÍ TRỤC VÍT INGERSOLL RAND TWO STAGE M200-350 KW SG

Đánh giá: 1/5 sao (trong tổng số 7 bình chọn)
Bình chọn của bạn:

Thông tin chi tiết Hướng dẫn sử dụng Nhận xét

Nhà thầu cơ điện Hoàng Nguyên

Chuyên cung cấp

Máy nén khí, dịch vụ bảo trì - bảo dưỡng máy nén khí,

Phụ kiện lọc gió, lọc dầu, lọc tách dầu, dầu máy nén khí.

Dầu nhớt động cơ Diesel, Dầu công nghiệp, dầu thủy lực, dầu truyền nhiệt....

2440 Quốc lộ 1A, Hố Nai 3, Trảng Bom, Đồng nai.

0903009464 Mr Duy - ctyhne@gmail.com

Region: South East Asia Version: SEA2014 Mar Original: CIEM
Cancel: All previous Expire Date:
Note: Ex-Works
CIEM
– High efficiency IP23, 415V/3PH/50HZ motor
– High efficiency 2-stage airend
– No maintenance integral gear drive system
– Air or Water-Cooled aftercooler with moisture separator
– Integral star delta starter (LV model)
– Factory-fill of SSR UltraCoolant
– Energy saving IntellisysTM capacity control system
– Digital inlet control valve
– Upper range modulation
– 4 unit integral sequencer
– 85 dB(A) low sound enclosure
– Dimension (mm): 415V:4000 L x 1930 W x 2146 H
6KV:4650 L x 1930 W x 2146 H
– Weight AC (kg): M200:415V:5860,6KV:6660
M250:415V:6030,6KV:6740 M300:415V:7190,6KV:7370 M350:415V:7630,6KV:8100

Model	CCN	Capacity m3/min ft3/min		Operating bar(g)	Pressure psi(g)	Cooler A/C/W/C	Voltage V	Control SG/SE
EU/BSP TANK	(with MOM)
ML200-2S	99326878	41.5	1465	7.5	109	AC	415V	SG
	99327033	41.5	1465	7.5	109	WC	415V	SG
MM200-2S	99326886	38.8	1370	8.5	123	AC	415V	SG
	99327041	38.8	1370	8.5	123	WC	415V	SG
MH200-2S	99326894	36.2	1278	10.0	145	AC	415V	SG
	99327058	36.2	1278	10.0	145	WC	415V	SG
MXU200-2S	99326902	29.6	1045	14.0	203	AC	415V	SG
	99327066	29.6	1045	14.0	203	WC	415V	SG
ML200-2S	99326951	41.5	1465	7.5	109	AC	6000V	SG
	99327116	41.5	1465	7.5	109	WC	6000V	SG
MM200-2S	99326969	38.8	1370	8.5	123	AC	6000V	SG
	99327124	38.8	1370	8.5	123	WC	6000V	SG
MH200-2S	99326977	36.2	1278	10.0	145	AC	6000V	SG
	99327132	36.2	1278	10.0	145	WC	6000V	SG
MXU200-2S	99326985	29.6	1045	14.0	203	AC	6000V	SG
	99327140	29.6	1045	14.0	203	WC	6000V	SG
ML250-2S	99326910	49.2	1737	7.5	109	AC	415V	SG
	99327074	49.2	1737	7.5	109	WC	415V	SG
MM250-2S	99326928	47.4	1674	8.5	123	AC	415V	SG
	99327082	47.4	1674	8.5	123	WC	415V	SG
MH250-2S	99326936	44.2	1561	10.0	145	AC	415V	SG
	99327090	44.2	1561	10.0	145	WC	415V	SG
MXU250-2S	99326944	36.4	1285	14.0	203	AC	415V	SG
	99327108	36.4	1285	14.0	203	WC	415V	SG
ML250-2S	99326993	49.2	1737	7.5	109	AC	6000V	SG
	99327157	49.2	1737	7.5	109	WC	6000V	SG
MM250-2S	99327009	47.4	1674	8.5	123	AC	6000V	SG
	99327165	47.4	1674	8.5	123	WC	6000V	SG
MH250-2S	99327017	44.2	1561	10.0	145	AC	6000V	SG
	99327173	44.2	1561	10.0	145	WC	6000V	SG
MXU250-2S	99327025	36.4	1285	14.0	203	AC	6000V	SG
	99327181	36.4	1285	14.0	203	WC	6000V	SG

Model	CCN	Capacity m3/min ft3/min		Operating bar(g)	Pressure psi(g)	Cooler A/C/W/C	Voltage V	Control SG/SE
EU/BSP TANK	(with MOM)
ML300-2S	99324097	60.2	2126	7.5	109	AC	415V	SG
	99324378	60.2	2126	7.5	109	WC	415V	SG
MM300-2S	99324105	56.0	1977	8.5	123	AC	415V	SG
	99324386	56.0	1977	8.5	123	WC	415V	SG
MH300-2S	99324113	52.1	1840	10.0	145	AC	415V	SG
	99324394	52.1	1840	10.0	145	WC	415V	SG
MXU300-2S	99324121	44.3	1564	14.0	203	AC	415V	SG
	99324402	44.3	1564	14.0	203	WC	415V	SG
ML300-2S	99324238	60.2	2126	7.5	109	AC	6000V	SG
	99324519	60.2	2126	7.5	109	WC	6000V	SG
MM300-2S	99324246	56.0	1977	8.5	123	AC	6000V	SG
	99324527	56.0	1977	8.5	123	WC	6000V	SG
MH300-2S	99324253	52.1	1840	10.0	145	AC	6000V	SG
	99324535	52.1	1840	10.0	145	WC	6000V	SG
MXU300-2S	99324261	44.3	1564	14.0	203	AC	6000V	SG
	99324543	44.3	1564	14.0	203	WC	6000V	SG
ML350-2S	99324139	69.2	2443	7.5	109	AC	415V	SG
	99324410	69.2	2443	7.5	109	WC	415V	SG
MM350-2S	99324147	64.1	2263	8.5	123	AC	415V	SG
	99324428	64.1	2263	8.5	123	WC	415V	SG
MH350-2S	99324154	59.5	2101	10.0	145	AC	415V	SG
	99324436	59.5	2101	10.0	145	WC	415V	SG
MXU350-2S	99324162	50.2	1773	14.0	203	AC	415V	SG
	99324444	50.2	1773	14.0	203	WC	415V	SG
ML350-2S	99324279	69.2	2443	7.5	109	AC	6000V	SG
	99324550	69.2	2443	7.5	109	WC	6000V	SG
MM350-2S	99324287	64.1	2263	8.5	123	AC	6000V	SG
	99324568	64.1	2263	8.5	123	WC	6000V	SG
MH350-2S	99324295	59.5	2101	10.0	145	AC	6000V	SG
	99324576	59.5	2101	10.0	145	WC	6000V	SG
MXU350-2S	99324303	50.2	1773	14.0	203	AC	6000V	SG
	99324584	50.2	1773	14.0	203	WC	6000V	SG
