Thông tin sản phẩm

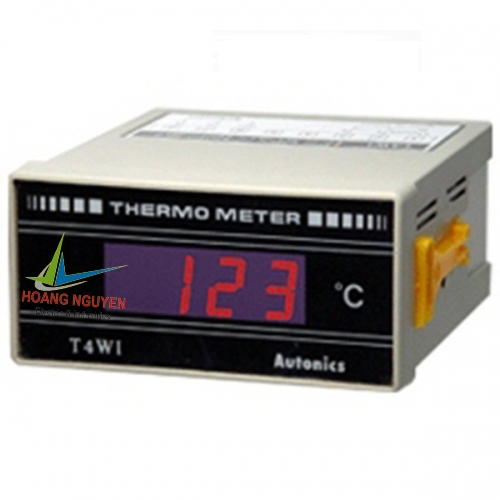

Tên sản phẩm: BỘ ĐIỀU KHIỂN NHIỆT ĐỘ DIGITAL AUTONICS T4WI Mã số sản phẩm: T4WI
Model: BỘ ĐIỀU KHIỂN NHIỆT ĐỘ DIGITAL AUTONICS T4WI Mã số sản phẩm: T4WI
Model: BỘ ĐIỀU KHIỂN NHIỆT ĐỘ DIGITAL AUTONICS T4WI Mã số sản phẩm: T4WI
BỘ ĐIỀU KHIỂN NHIỆT ĐỘ DIGITAL AUTONICS T4WI Mã số sản phẩm: T4WI
Đánh giá: 0/5 sao (trong tổng số 3 bình chọn)
Bình chọn của bạn:
Bình chọn của bạn:
* Kích thước: 9.8(W) x 14.2(H) mm
* Chỉ hiển thị, không có chức năng ngõ ra
* Chỉ hiển thị, không có chức năng ngõ ra
* Chức năng đo chính xác cao : F.S ± 0.5%
Specification Table
Model | T3NI | T4YI | T4WI | T3SI | T3HI | T4MI | T4LI | |
Power supply | 12-24VDC | 100-240VAC 50/60HZ | 110-220VAC 50/60HZ | 100/240VAC 50/60Hz | 110/220VAC 50/60HZ | |||
Allowable voltage range | 90 to 110% of rated voltage | |||||||
Power consumption | Max. 2W | Max. 3VA | ||||||
Display method | 7 Segment(red) LED method | |||||||
Character size(W×H) | 5.0×8.0mm | 9.8×14.2mm | 4.0×8.0mm | 6.0×10.0mm | 7.2×9.8mm | 9.5×14.2mm | ||
Display accuracy | F.S. ±0.3% rdg ±1digit | F.S. ±0.5% rdg ±1digit | ||||||
Sensor input | DPt100Ω | Thermocouples(T.C): K(CA), J(IC), R(PR) / RTD: DPt100Ω ※There is no R(PR) in T4MI, T4LI Series. |
||||||
Input line resistance | Allowable line resistance max. 5Ω per a wire |
Thermocouples: Max. 100Ω / RTD: Allowable line resistance max. 5Ω per a wire | ||||||
Insulation resistance | Min. 100MΩ(at 500VDC megger) | |||||||
Dielectric strength | 2,000VAC 50/60Hz for 1 min. | |||||||
Noise strength | ±500V | ±1kV the square wave noise(pulse width : 1㎲) by the noise simulator | ||||||
Vibration | Mechanical | 0.75mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 1 hour | ||||||
Malfunction | 0.5mm amplitude at frequency of 10 to 55Hz(for 1 mln.) in each of X, Y, Z directions for 10 minutes | |||||||
Shock | Mechanical | 300m/s²(approx. 30G) in each of X, Y, Z directions for 3 times | ||||||
Malfunction | 100m/s²(approx. 10G) in each of X, Y, Z directions for 3 times | |||||||
Environ -ment | Ambient temperature | -10 to 50℃, storage: -20 to 60℃ | ||||||
Ambient humidity | 35 to 85%RH, storage: 35 to 85%RH | |||||||
Unit weight | Approx. 34g | Approx. 170g | Approx. 322g | Approx. 107g | Approx. 368g | Approx. 356g | Approx. 433g |
※F.S. is same with sensor measuring temperature range.
Ex) In case of using temperature is from -99.9 to 199.9℃, Full scale is 299.8.
※ Environment resistance is rated at no freezing or condensation.Specification Table
