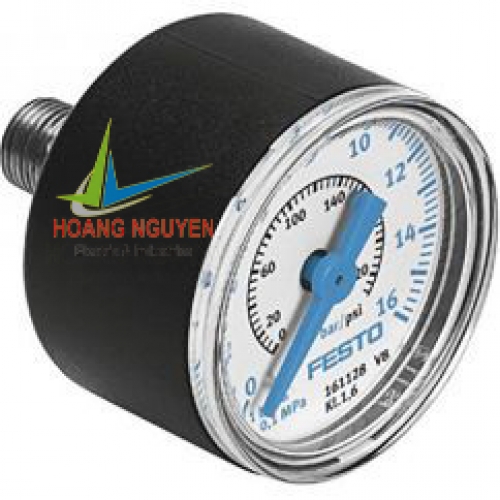

Đồng Hồ Áp Suất Festo - Festo Pressure gauge
1. Danh sách mã Đồng hồ áp suất Hoàng Nguyên cung cấp:
1.1 Precision pressure gauge PAGN
-
Kết nối QSP-10
-
Dải đo 0 ~ 16 bar
-
Đơn vị: bar, psi
|
Part No |
Mã đặt hàng |
Kiểu gá | Dải đo (bar) | Kết nối khí |
|
543488 |
PAGN-26-10-P10 |
Line installation |
0 ... 10 bar |
QSP...10 |
|
543487 |
PAGN-26-16-P10 |
Line installation |
0 ... 16 bar |
QSP...10 |
|
548009 |
PAGN-40-10-P10 |
Line installation |
0 ... 10 bar |
QSP...10 |
|
548010 |
PAGN-40-16-P10 |
Line installation |
0 ... 16 bar |
QSP...10 |
|
563735 |
PAGN-26-1.6M-P10 |
Line installation |
|
QSP...10 |
|
563732 |
PAGN-26-145P-P10 |
Line installation |
|
QSP...10 |
|
563736 |
PAGN-26-1M-P10 |
Line installation |
|
QSP...10 |
|
563731 |
PAGN-26-232P-P10 |
Line installation |
|
QSP...10 |
|
563737 |
PAGN-40-1.6M-P10 |
Line installation |
|
QSP...10 |
|
563734 |
PAGN-40-145P-P10 |
Line installation |
|
QSP...10 |
|
563738 |
PAGN-40-1M-P10 |
Line installation |
|
QSP...10 |
|
563733 |
PAGN-40-232P-P10 |
Line installation |
|
QSP...10 |
1.2 Pressure gauge MA
-
Kết nối M5, G1/8, G1/4, R1/8, R1/4, QS4, QS6, QS8
-
Dải đo: 0 ~ 25 bar
-
Đơn vị: bar, psi, MPa
|
Part No |
Order Code |
Mounting type |
Indicating range [bar] |
Pneumatic connection |
|
153383 |
MA-15-10-QS-4 |
Line installation |
0 ... 10 bar |
QS-4 |
|
153384 |
MA-15-10-QS-6 |
Line installation |
0 ... 10 bar |
QS-6 |
|
153385 |
MA-15-10-QS-8 |
Line installation |
0 ... 10 bar |
QS-8 |
|
183897 |
MA-23-10-R1/8 |
Line installation |
0 ... 10 bar |
R1/8 |
|
183898 |
MA-23-16-R1/8 |
Line installation |
0 ... 16 bar |
R1/8 |
|
183896 |
MA-23-6-R1/8 |
Line installation |
0 ... 6 bar |
R1/8 |
|
526324 |
MA-27-1,0-M5-MPA |
Line installation |
|
M5 |
|
526323 |
MA-27-10-M5 |
Line installation |
0 ... 10 bar |
M5 |
|
527405 |
MA-27-160-M5-PSI |
Line installation |
|
M5 |
|
541733 |
MA-27-16-R1/8 |
Line installation |
0 ... 16 bar |
R1/8 |
|
541734 |
MA-27-25-R1/8 |
Line installation |
0 ... 25 bar |
R1/8 |
|
184285 |
MA-40-0,6-G1/4-MPA |
Line installation |
|
G1/4 |
|
184286 |
MA-40-1,0-G1/4-MPA |
Line installation |
|
G1/4 |
|
526778 |
MA-40-1,0-R1/8-MPA-E-RG |
Line installation |
|
R1/8 |
|
184287 |
MA-40-1,6-G1/4-MPA |
Line installation |
|
G1/4 |
|
192733 |
MA-40-1,6-G1/8-MPA |
Line installation |
|
G1/8 |
|
526779 |
MA-40-1,6-R1/8-MPA-E-RG |
Line installation |
|
R1/8 |
|
359874 |
MA-40-10-1/8 |
Line installation |
0 ... 10 bar |
G1/8 |
|
162835 |
MA-40-10-1/8-EN |
Line installation |
0 ... 10 bar |
R1/8 |
|
183900 |
MA-40-10-G1/4-EN |
Line installation |
0 ... 10 bar |
G1/4 |
|
187079 |
MA-40-10-R1/4-EN |
Line installation |
0 ... 10 bar |
R1/4 |
|
525725 |
MA-40-10-R1/8-E-RG |
Line installation |
0 ... 10 bar |
R1/8 |
|
526786 |
MA-40-145-R1/8-PSI-E-RG |
Line installation |
|
R1/8 |
|
345395 |
MA-40-16-1/8 |
Line installation |
0 ... 16 bar |
G1/8 |
|
529046 |
MA-40-16-1/8-EN-DPA |
Line installation |
0 ... 16 bar |
R1/8 |
|
183901 |
MA-40-16-G1/4-EN |
Line installation |
0 ... 16 bar |
G1/4 |
|
187080 |
MA-40-16-R1/4-EN |
Line installation |
0 ... 16 bar |
R1/4 |
|
525726 |
MA-40-16-R1/8-E-RG |
Line installation |
0 ... 16 bar |
R1/8 |
|
192732 |
MA-40-1-G1/8-MPA |
Line installation |
|
G1/8 |
|
184288 |
MA-40-2,5-G1/4-MPA |
Line installation |
|
G1/4 |
|
546963 |
MA-40-2,5-R1/8-E-RG |
Line installation |
0 ... 2.5 bar |
R1/8 |
|
526787 |
MA-40-232-R1/8-PSI-E-RG |
Line installation |
|
R1/8 |
|
526167 |
MA-40-25-1/8-EN |
Line installation |
0 ... 25 bar |
G1/8 |
|
183902 |
MA-40-25-G1/4-EN |
Line installation |
0 ... 25 bar |
G1/4 |
|
187081 |
MA-40-25-R1/4-EN |
Line installation |
0 ... 25 bar |
R1/4 |
|
183899 |
MA-40-6-G1/4-EN |
Line installation |
0 ... 6 bar |
G1/4 |
|
187078 |
MA-40-6-R1/4-EN |
Line installation |
0 ... 6 bar |
R1/4 |
|
526780 |
MA-50-0,25-R1/4-MPA-E-RG |
Line installation |
|
R1/4 |
|
526781 |
MA-50-1,0-R1/4-MPA-E-RG |
Line installation |
|
R1/4 |
|
192735 |
MA-50-1,6-G1/4-MPA |
Line installation |
|
G1/4 |
|
526782 |
MA-50-1,6-R1/4-MPA-E-RG |
Line installation |
|
R1/4 |
|
359873 |
MA-50-10-1/4 |
Line installation |
0 ... 10 bar |
G1/4 |
|
162838 |
MA-50-10-1/4-EN |
Line installation |
0 ... 10 bar |
G1/4 |
|
525728 |
MA-50-10-R1/4-E-RG |
Line installation |
0 ... 10 bar |
R1/4 |
|
526789 |
MA-50-145-R1/4-PSI-E-RG |
Line installation |
|
R1/4 |
|
356759 |
MA-50-16-1/4 |
Line installation |
0 ... 16 bar |
G1/4 |
|
162839 |
MA-50-16-1/4-EN |
Line installation |
0 ... 16 bar |
G1/4 |
|
525729 |
MA-50-16-R1/4-E-RG |
Line installation |
0 ... 16 bar |
R1/4 |
|
192734 |
MA-50-1-G1/4-MPA |
Line installation |
|
G1/4 |
|
162837 |
MA-50-2,5-1/4-EN |
Line installation |
0 ... 2.5 bar |
G1/4 |
|
525727 |
MA-50-2,5-R1/4-E-RG |
Line installation |
0 ... 2.5 bar |
R1/4 |
|
526790 |
MA-50-232-R1/4-PSI-E-RG |
Line installation |
|
R1/4 |
|
526788 |
MA-50-36-R1/4-PSI-E-RG |
Line installation |
|
R1/4 |
|
7169 |
MA-63-0,25 |
Line installation |
0 ... 0.25 bar |
G1/4 |
|
526783 |
MA-63-0,25-R1/4-MPA-E-RG |
Line installation |
|
R1/4 |
|
526784 |
MA-63-1,0-R1/4-MPA-E-RG |
Line installation |
|
R1/4 |
|
526785 |
MA-63-1,6-R1/4-MPA-E-RG |
Line installation |
|
R1/4 |
|
162840 |
MA-63-10-1/4-EN |
Line installation |
0 ... 10 bar |
G1/4 |
|
525731 |
MA-63-10-R1/4-E-RG |
Line installation |
0 ... 10 bar |
R1/4 |
|
162844 |
MA-63-1-1/4-EN |
Line installation |
0 ... 1 bar |
G1/4 |
|
526792 |
MA-63-145-R1/4-PSI-E-RG |
Line installation |
|
R1/4 |
|
162841 |
MA-63-16-1/4-EN |
Line installation |
0 ... 16 bar |
G1/4 |
|
525732 |
MA-63-16-R1/4-E-RG |
Line installation |
0 ... 16 bar |
R1/4 |
|
162845 |
MA-63-2,5-1/4-EN |
Line installation |
0 ... 2.5 bar |
G1/4 |
|
525730 |
MA-63-2,5-R1/4-E-RG |
Line installation |
0 ... 2.5 bar |
R1/4 |
|
526793 |
MA-63-232-R1/4-PSI-E-RG |
Line installation |
|
R1/4 |
|
526791 |
MA-63-36-R1/4-PSI-E-RG |
Line installation |
|
R1/4 |
1.3 Pressure gauge FMA
-
Connection: G1/4
-
Front panel mounting
-
Indicating range: 0 ... 16 bar
-
Display units: bar, psi
|
Part No |
Order Code |
Mounting type |
Indicating range [bar] |
Pneumatic connection |
|
159596 |
FMA-40-10-1/4-EN |
Front panel installation |
0 ... 10 bar |
G1/4 |
|
159597 |
FMA-40-16-1/4-EN |
Front panel installation |
0 ... 16 bar |
G1/4 |
|
159599 |
FMA-50-10-1/4-EN |
Front panel installation |
0 ... 10 bar |
G1/4 |
|
159600 |
FMA-50-16-1/4-EN |
Front panel installation |
0 ... 16 bar |
G1/4 |
|
159598 |
FMA-50-2,5-1/4-EN |
Front panel installation |
0 ... 2.5 bar |
G1/4 |
|
225783 |
FMA-63-0,25-C |
Front panel installation |
0 ... 0.25 bar |
G1/4 |
|
159602 |
FMA-63-10-1/4-EN |
Front panel installation |
0 ... 10 bar |
G1/4 |
|
159603 |
FMA-63-16-1/4-EN |
Front panel installation |
0 ... 16 bar |
G1/4 |
|
159601 |
FMA-63-2,5-1/4-EN |
Front panel installation |
0 ... 2.5 bar |
G1/4 |
1.4 Precision pressure gauges FMAP, MAP
-
Connection: G1/4
-
Front panel mounting
-
Indicating range: 0 ... 16 bar
Display units: bar, psi
|
Part No |
Order Code |
Mounting type |
Indicating range [bar] |
Pneumatic connection |
|
161126 |
MAP-40-1-1/8-EN |
Line installation |
0 ... 1 bar |
R1/8 |
|
161128 |
MAP-40-16-1/8-EN |
Line installation |
0 ... 16 bar |
R1/8 |
|
162842 |
MAP-40-4-1/8-EN |
Line installation |
0 ... 4 bar |
R1/8 |
|
161127 |
MAP-40-6-1/8-EN |
Line installation |
0 ... 6 bar |
R1/8 |
|
161129 |
FMAP-63-1-1/4-EN |
Front panel installation |
0 ... 1 bar |
G1/4 |
|
161131 |
FMAP-63-16-1/4-EN |
Front panel installation |
0 ... 16 bar |
G1/4 |
|
162843 |
FMAP-63-4-1/4-EN |
Front panel installation |
0 ... 4 bar |
G1/4 |
|
161130 |
FMAP-63-6-1/4-EN |
Front panel installation |
0 ... 6 bar |
G1/4 |
1.5 Pressure gauge set DPA
-
Pressure gauge kit for pressure booster DPA.
|
Part No |
Order Code |
Mounting type |
Pneumatic connection |
|
526098 |
DPA-100-10-MA-SET |
with external (male) thread |
G1/4 |
|
526099 |
DPA-100-16-MA-SET |
with external (male) thread |
G1/4 |
|
540781 |
DPA-40-10-MA-SET |
with external (male) thread |
R1/8 |
|
540782 |
DPA-40-16-MA-SET |
with external (male) thread |
R1/8 |
|
526096 |
DPA-63-10-MA-SET |
with external (male) thread |
G1/8 |
|
526097 |
DPA-63-16-MA-SET |
with external (male) thread |
G1/8 |
1.6 Vacuum gauges VAM/FVAM
-
Front panel mounting line fitting with male thread
-
Indicating range: 1 ... 9 bar
-
Display units: bar, psi, inHG
|
Part No |
Order Code |
Description |
|
537812 |
FVAM-40-V1/0-G1/8-EN |
Vacuum gauge |
|
537813 |
FVAM-63-V1/0-G1/4-EN |
Vacuum gauge |
|
537810 |
VAM-40-V1/0-R1/8-EN |
Vacuum gauge |
|
547842 |
VAM-40-V1/0-R1/8-E-RG |
Vacuum gauge |
|
537811 |
VAM-63-V1/0-R1/4-EN |
Vacuum gauge |
|
547843 |
VAM-63-V1/0-R1/4-E-RG |
Vacuum gauge |
|
537814 |
VAM-63-V1/9-R1/4-EN |
Vacuum gauge |
