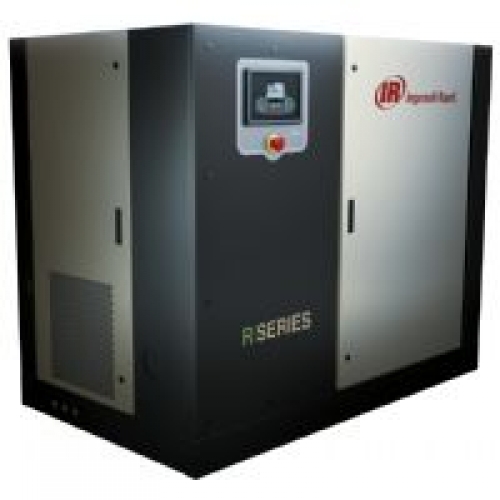

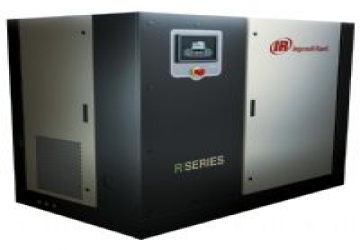

Model: MÁY NÉN KHÍ TRỤC VÍT INGERSOLL RAND RS30 -37 I ( CHINA)
Bình chọn của bạn:
Next Generation R-Series 30-37kW
Next Generation R-Series 30-37kW / 40-50hp oil-flooded, rotary screw air compressors
Introducing the Next Generation R-Series oil-flooded rotary screw air compressors from Ingersoll Rand.
State-of-art airend design, IE3 TEFC motor, improving energy efficiency up to 16%
– 15% improvement of FAD
– Robust technology: V-Shield,PAC, Free-Floating Cooling, Direct Gear-Drive etc.
– Come standard with water separator
– Xe-Controller,
– TAS module, able to function under 46°C, air quality meets ISO 8573 rating 1-5-1
– Longer life of service parts
– IP54 Electrical Protection
– Remote start / stop (<50m Cable Length)
– More options to sustain exceptional reliability under harsh conditions
– Dimensions (mm): 1937 L x 1056 W x 1534 H
– Weight (kg):
– RS30I:1045; -R30I TAS: 1150
– RS37I: 1095; -R37I TAS 1200
Model | CCN | Công suất | Áp suất | Lưu lượng | Điện áp | Bộ điều khiển | Kiểu làm mát
|
RS30I_A7.5 | 47547511001 | 30 | 7.5 | 5.6 | 400/3/50 | Xe-70M | AC |
RS30I_A8.5 | 47547512001 | 30 | 8.5 | 5.2 | 400/3/50 | Xe-70M | AC |
RS37I_A7.5 | 47547513001 | 37 | 7.5 | 6.6 | 400/3/50 | Xe-70M | AC |
RS37I_A8.5 | 47547514001 | 37 | 8.5 | 6.3 | 400/3/50 | Xe-70M | AC |
Total Air SolutIon(TAS) | |||||||
RS30I_A7.5 TAS | 47547515001 | 30 | 7.5 | 5.6 | 400/3/50 | Xe-70M | AC |
RS30I_A8.5 TAS | 47547516001 | 30 | 8.5 | 5.2 | 400/3/50 | Xe-70M | AC |
RS37I_A7.5 TAS | 47547517001 | 37 | 7.5 | 6.6 | 400/3/50 | Xe-70M | AC |
RS37I_A8.5 TAS | 49159338 | 37 | 8.5 | 6.3 | 400/3/50 | Xe-70M | AC |
