Thông tin sản phẩm

Tên sản phẩm: Festo Valves CPASC1, CPPSC1
Model: CPASC1, CPPSC1

Electrically and pneumatically actuated directional control valves.

Đánh giá: 0/5 sao (trong tổng số 3 bình chọn)
Bình chọn của bạn:

Thông tin chi tiết Hướng dẫn sử dụng Nhận xét

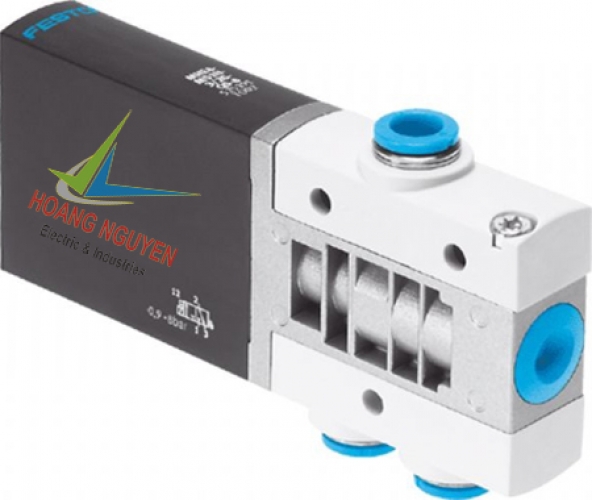

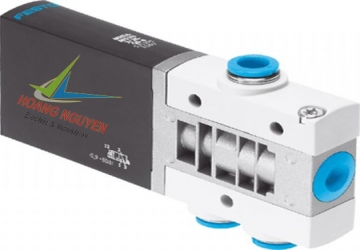

Festo Valves CPASC1, CPPSC1

1. MÔ TẢ

Van đảo chiều Festo loại thông dụng, seriesCPASC1, CPPSC1
Cổng kết nối M5, đầu cắm nhanh ống phi 3, 4 mm
Lưu lượng 150 ... 220 l/min
Điện áp 24 VDC
Semi in-line valve

Sub-base valve
- Solenoid actuated, pilot actuated
- Signal status display with LED
- Pneumatically actuated
Manifold blocks
Manifold sub-bases

Danh sách mã Festo ValvesCPASC1, CPPSC1 Hoàng Nguyên cung cấp:

Part No	Order Code	Valve function	Flow Rate
527016	CPASC1-M1H-B-H-2,5	5/3 pressurised	220 l/min
526998	CPASC1-M1H-B-P-2,5	5/3 pressurised	220 l/min
527020	CPASC1-M1H-E-H-2,5	5/3 exhausted	180 l/min
527002	CPASC1-M1H-E-P-2,5	5/3 exhausted	180 l/min
527018	CPASC1-M1H-G-H-2,5	5/3 closed	220 l/min
527000	CPASC1-M1H-G-P-2,5	5/3 closed	220 l/min
527024	CPASC1-M1H-I-H-2,5	2x2/2 closed, monostable	150 l/min
527006	CPASC1-M1H-I-P-2,5	2x2/2 closed, monostable	150 l/min
527010	CPASC1-M1H-J-H-2,5	5/2 bistable	220 l/min
526992	CPASC1-M1H-J-P-2,5	5/2 bistable	220 l/min
527014	CPASC1-M1H-K-H-2,5	2x3/2 closed, monostable	220 l/min
526996	CPASC1-M1H-K-P-2,5	2x3/2 closed, monostable	220 l/min
527008	CPASC1-M1H-M-H-2,5	5/2 monostable	220 l/min
526990	CPASC1-M1H-M-P-2,5	5/2 monostable	220 l/min
527012	CPASC1-M1H-N-H-2,5	2x3/2 open, monostable	220 l/min
526994	CPASC1-M1H-N-P-2,5	2x3/2 open, monostable	220 l/min
527022	CPASC1-M1H-X-H-2,5	3/2 closed, monostable	120 l/min
527004	CPASC1-M1H-X-P-2,5	3/2 closed, monostable	120 l/min
527307	CPPSC1-M1H-B-H-M5	5/3 pressurised	180 l/min
527343	CPPSC1-M1H-B-H-Q3	5/3 pressurised	140 l/min
527325	CPPSC1-M1H-B-H-Q4	5/3 pressurised	180 l/min
527298	CPPSC1-M1H-B-P-M5	5/3 pressurised	180 l/min
527334	CPPSC1-M1H-B-P-Q3	5/3 pressurised	140 l/min
527316	CPPSC1-M1H-B-P-Q4	5/3 pressurised	180 l/min
527309	CPPSC1-M1H-E-H-M5	5/3 exhausted	150 l/min
527345	CPPSC1-M1H-E-H-Q3	5/3 exhausted	140 l/min
527327	CPPSC1-M1H-E-H-Q4	5/3 exhausted	170 l/min
527300	CPPSC1-M1H-E-P-M5	5/3 exhausted	150 l/min
527336	CPPSC1-M1H-E-P-Q3	5/3 exhausted	140 l/min
527318	CPPSC1-M1H-E-P-Q4	5/3 exhausted	170 l/min
527308	CPPSC1-M1H-G-H-M5	5/3 closed	150 l/min
527344	CPPSC1-M1H-G-H-Q3	5/3 closed	130 l/min
527326	CPPSC1-M1H-G-H-Q4	5/3 closed	150 l/min
527299	CPPSC1-M1H-G-P-M5	5/3 closed	150 l/min
527335	CPPSC1-M1H-G-P-Q3	5/3 closed	130 l/min
527317	CPPSC1-M1H-G-P-Q4	5/3 closed	150 l/min
527311	CPPSC1-M1H-I-H-M5	2x2/2 closed, monostable	150 l/min
527347	CPPSC1-M1H-I-H-Q3	2x2/2 closed, monostable	130 l/min
527329	CPPSC1-M1H-I-H-Q4	2x2/2 closed, monostable	150 l/min
527302	CPPSC1-M1H-I-P-M5	2x2/2 closed, monostable	150 l/min
527338	CPPSC1-M1H-I-P-Q3	2x2/2 closed, monostable	130 l/min
527320	CPPSC1-M1H-I-P-Q4	2x2/2 closed, monostable	150 l/min
527304	CPPSC1-M1H-J-H-M5	5/2 bistable	150 l/min
527340	CPPSC1-M1H-J-H-Q3	5/2 bistable	140 l/min
527322	CPPSC1-M1H-J-H-Q4	5/2 bistable	180 l/min
527295	CPPSC1-M1H-J-P-M5	5/2 bistable	150 l/min
527331	CPPSC1-M1H-J-P-Q3	5/2 bistable	140 l/min
527313	CPPSC1-M1H-J-P-Q4	5/2 bistable	180 l/min
527306	CPPSC1-M1H-K-H-M5	2x3/2 closed, monostable	150 l/min
527342	CPPSC1-M1H-K-H-Q3	2x3/2 closed, monostable	130 l/min
527324	CPPSC1-M1H-K-H-Q4	2x3/2 closed, monostable	150 l/min
527297	CPPSC1-M1H-K-P-M5	2x3/2 closed, monostable	150 l/min
527333	CPPSC1-M1H-K-P-Q3	2x3/2 closed, monostable	130 l/min
527315	CPPSC1-M1H-K-P-Q4	2x3/2 closed, monostable	150 l/min
527303	CPPSC1-M1H-M-H-M5	5/2 monostable	150 l/min
527339	CPPSC1-M1H-M-H-Q3	5/2 monostable	140 l/min
527321	CPPSC1-M1H-M-H-Q4	5/2 monostable	180 l/min
527294	CPPSC1-M1H-M-P-M5	5/2 monostable	150 l/min
527330	CPPSC1-M1H-M-P-Q3	5/2 monostable	140 l/min
527312	CPPSC1-M1H-M-P-Q4	5/2 monostable	180 l/min
527305	CPPSC1-M1H-N-H-M5	2x3/2 open, monostable	150 l/min
527341	CPPSC1-M1H-N-H-Q3	2x3/2 open, monostable	140 l/min
527323	CPPSC1-M1H-N-H-Q4	2x3/2 open, monostable	180 l/min
527296	CPPSC1-M1H-N-P-M5	2x3/2 open, monostable	150 l/min
527332	CPPSC1-M1H-N-P-Q3	2x3/2 open, monostable	140 l/min
527314	CPPSC1-M1H-N-P-Q4	2x3/2 open, monostable	180 l/min
527310	CPPSC1-M1H-X-H-M5	3/2 closed, monostable	120 l/min
527346	CPPSC1-M1H-X-H-Q3	3/2 closed, monostable	100 l/min
527328	CPPSC1-M1H-X-H-Q4	3/2 closed, monostable	120 l/min
527301	CPPSC1-M1H-X-P-M5	3/2 closed, monostable	120 l/min
527337	CPPSC1-M1H-X-P-Q3	3/2 closed, monostable	100 l/min
527319	CPPSC1-M1H-X-P-Q4	3/2 closed, monostable	120 l/min
